Description
Convenient and Reliable Home EV Charging

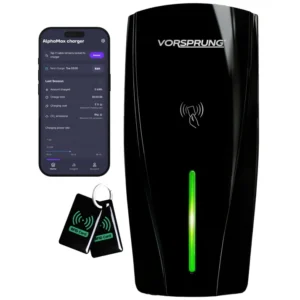

Make charging your electric vehicle at home easier with the Vorsprung Alpha Max 7.4kW Tethered Smart EV Charger.
Designed for single-phase electrical supplies, this wall-mounted charger delivers up to 7.4kW of charging power, making it a practical choice for UK households looking to charge their electric vehicles conveniently.
The integrated 5-metre Type 2 cable means there is no need to connect a separate charging lead each time you return home.

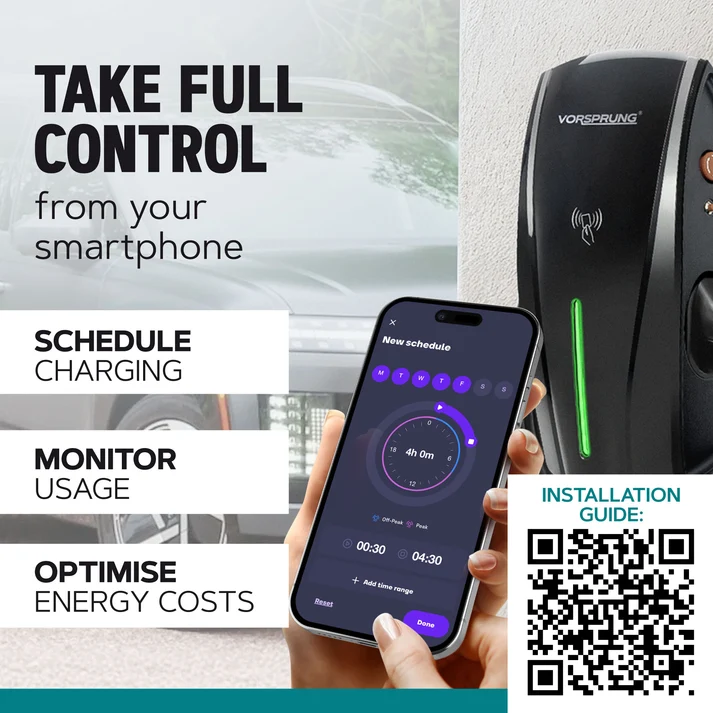

Smart Charging with App Control
Manage your charging sessions using the compatible Powerverse smartphone app.
The smart charging functions allow you to:
- Schedule charging sessions around your daily routine.
- Plan charging during eligible off-peak electricity tariff periods.
- Monitor charging activity and energy consumption.
- Adjust charging settings to suit your requirements.
With Wi-Fi and Ethernet connectivity, the Alpha Max offers flexible smart charging management.
7.4kW Charging Power
The charger supports a maximum output of 7.4kW on a suitable single-phase electrical supply.
Charging power can be adjusted between 3.7kW and 7.4kW, allowing settings to be adapted to the installation and available electrical capacity.
Actual charging speed depends on the vehicle, its onboard charger, battery condition and electrical installation.

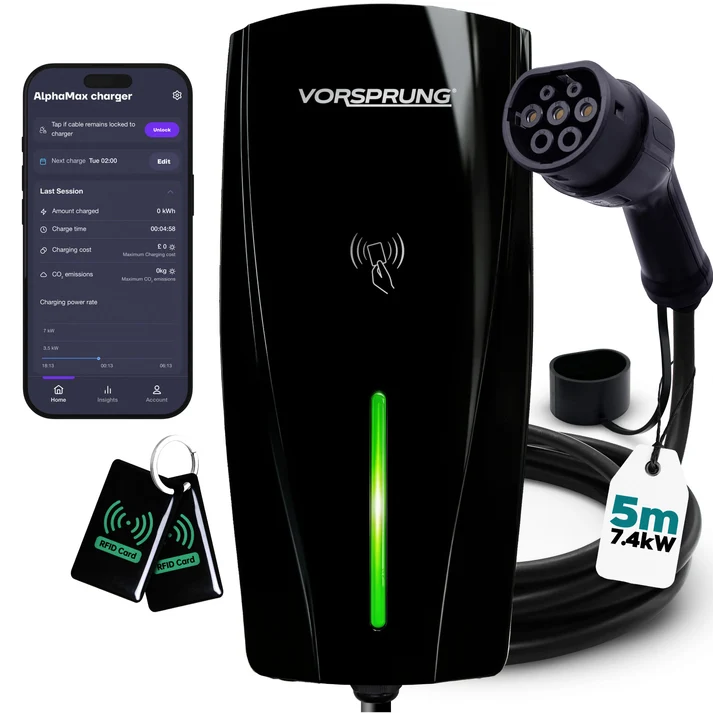

Built-In 5-Metre Type 2 Cable
The tethered design makes everyday charging more convenient.
Simply park your vehicle, take the attached charging connector and plug it into your car.
The Type 2 connector is suitable for vehicles equipped with a compatible Type 2 AC charging port, including many electric and plug-in hybrid vehicles sold in the UK.
Designed for Indoor and Outdoor Installation
The Alpha Max features an IP65-rated enclosure for protection against dust and water ingress.
Its robust construction makes it suitable for appropriate indoor or outdoor wall-mounted installations.
The charger also carries an IK10 impact-resistance rating.

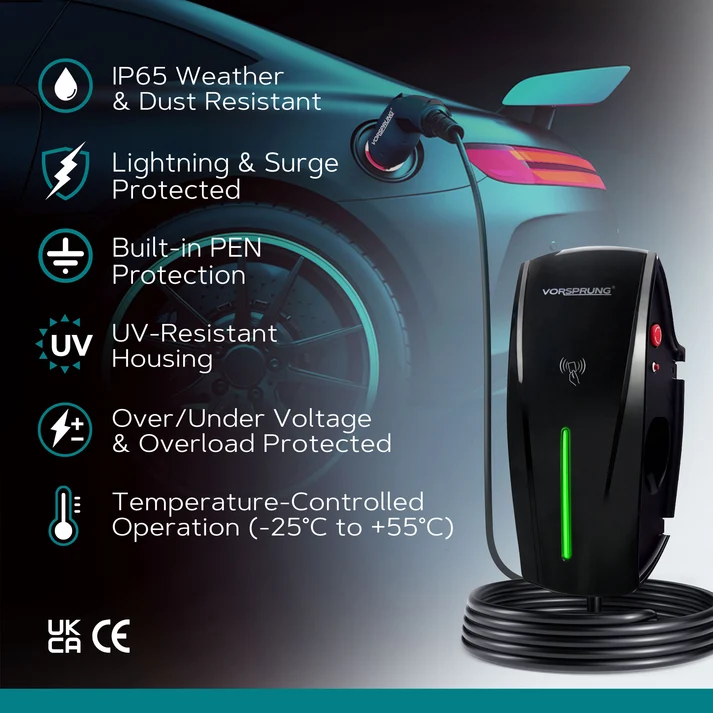

Safety and Charging Protection
The Vorsprung Alpha Max incorporates several safety functions, including:
- Built-in PEN fault protection
- DC leakage detection
- Type A RCD protection
- Overcurrent protection
- Overvoltage and undervoltage protection
Professional installation is required to ensure the charger is correctly connected, configured and protected in accordance with applicable UK electrical requirements.
RFID Access Control
The charger includes two RFID cards for convenient access management.
This feature is useful for households and installations where charging access needs to be controlled.
Professional EV Charger Installation
Choosing the right EV charger is only part of the process. A suitable electrical installation is essential for safe and dependable charging.
Contact Dall Engineering to discuss EV charger installation requirements, electrical suitability and product availability.
Technical Specifications
| Specification | Details |
| Brand | Vorsprung |
| Model | Alpha Max |
| Maximum charging output | 7.4kW |
| Adjustable power | 3.7kW–7.4kW |
| Connector type | Type 2 |
| Cable length | 5 metres |
| Electrical supply | 230V AC single-phase |
| Maximum current | 32A |
| Connectivity | Wi-Fi and Ethernet |
| App compatibility | Powerverse |
| RFID access | Two RFID cards included |
| Communication protocol | OCPP 1.6J |
| Weather protection | IP65 |
| Impact resistance | IK10 |
| Dimensions | 38 × 16.9 × 15.1 cm |
| Manufacturer warranty | 5 years, subject to warranty terms |
Order or Enquire Today
Looking for a smart 7.4kW home EV charging solution?
Explore the Vorsprung Alpha Max Tethered EV Charger and contact Dall Engineering to discuss suitability, pricing, product availability and professional installation.
